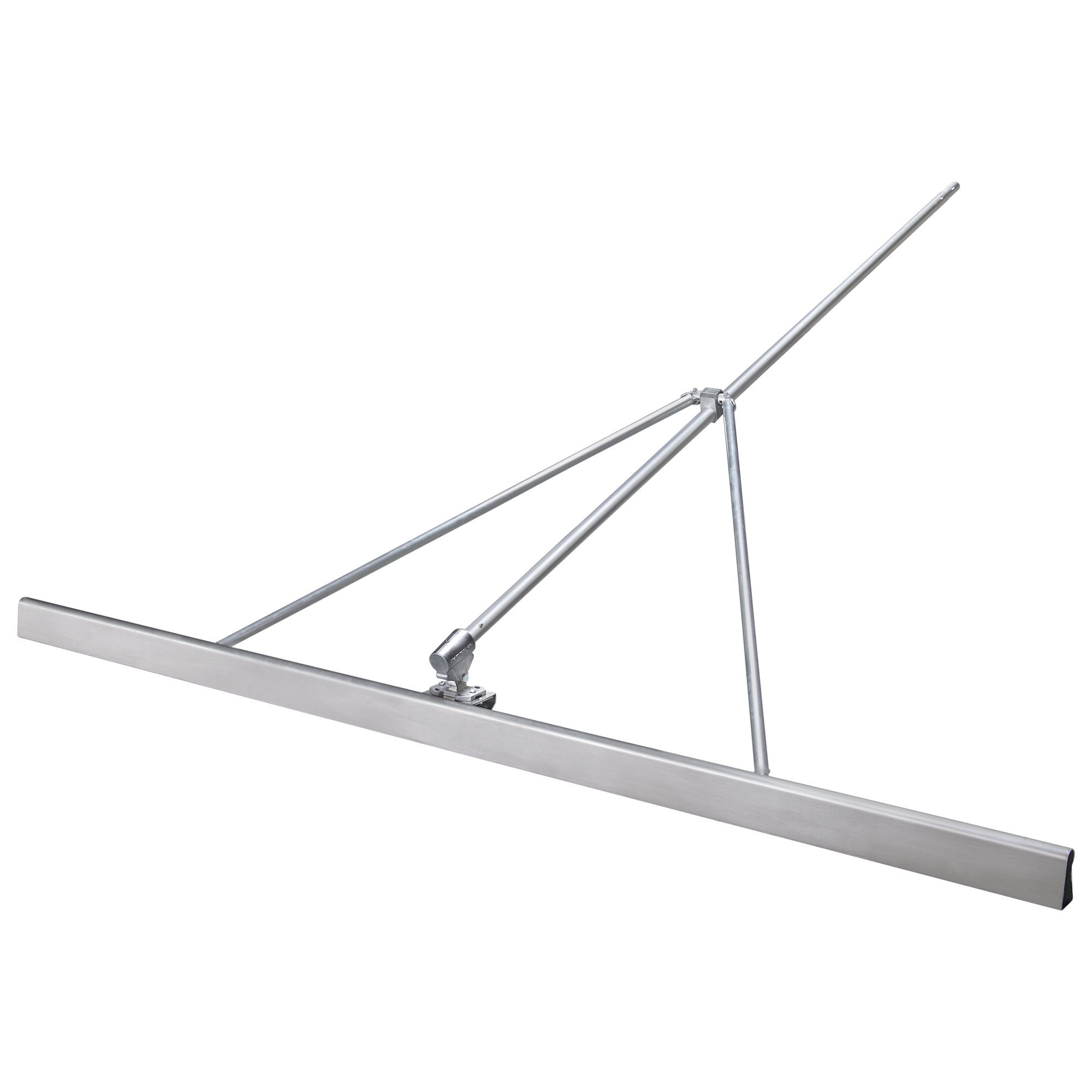

16' Magnesium Keyhole Paver's Straightedge with Bracket, Braces, and Handle

$884.00
16' Magnesium Keyhole Paver's Straightedge with Bracket, Braces, & Handle
SKU: CC723

Made with of Genuine Extru-Lite™ magnesium which is 30% lighter than similar straightedges. Quality material won't rust extending the life and use of tool. This straightedge is built for strength and rigidity, but lightweight enough for the largest of jobs. A special keyhole design provides strength. The keyhole grip can also be used as a hand screed with a comfortable grip. This sturdy highway straightedge and checking tool is lightweight enough to easily maneuver around large slabs. The 16' tool moves along slabs with ease. The blade is 4-1/2" tall and 2-1/2" wide for proper coverage. Plastic end caps extend the life of the tool by eliminating the opportunity for concrete and other materials to build-up within the blade. Support Outriggers extend up 5' from the blade up to the handle for balance and straightness. Quick release pins on the braces allow for ease in set up and breakdown of the tool. Kraft Tool's a href="CC296">Knucklehead® II bracket (CC296) connects the handle and blade for easy adjustments with the turn of the handle. The bracket is made of rugged, yet lightweight aluminum for durability. Control the pitch of the blade with a one-to-one turning ratio of handle to blade. The bracket has a protected grease reservoir for longer wear. A 10' x 1-3/4" aluminum button handle (CC291) completes the tool. Must ship via truck due to length.

  • Sturdy highway straightedge and checking tool
  • Special keyhole shape for strength
  • Lightweight Genuine Extru-Lite™ Magnesium construction
  • 30% lighter than aluminum
  • Plugged ends eliminate build -up in tool
  • 5 Ft. Heavy-Duty Outriggers provide support
  • Quick release pins for easy assembly
  • Includes Knucklehead® II Tilt Bracket
  • One-to-one turning ratio of handle to pitch of blade
  • Grease reservoir is protected for extended wear
  • Includes 10 Ft. Aluminum Button Handle with Insert
  • Must ship via truck
Products specifications
NameValue
Length192" (4876.8mm)
Height4-1/2" (114.3mm)
Width2-1/2" (63.5mm)
Blade MaterialGenuine Extru-Lite™ Magnesium
Handle MaterialAluminum
Handle Length120" (3048mm)
Blade Length16' (4.9M)
ShippingFreight
